### Binary Classification Using LightGBM

Dr. James McCaffrey from Microsoft Research presents a full-code, step-by-step tutorial on using the LightGBM tree-based system to perform binary classification (predicting a discrete variable that has exactly two possible values).

A binary classification problem is one where the goal is to predict a discrete variable that has exactly two possible values. For example, you might want to predict a person's sex (male or female) from age, state of residence, annual income and political leaning (conservative, moderate, liberal). There are many machine learning techniques for binary classification. One of the most powerful techniques is to use the LightGBM (lightweight gradient boosting machine) system.

LightGBM is a sophisticated, open-source, tree-based system that was introduced in 2017. LightGBM can perform binary classification , multi-class classification, (predict one of three or more possible values), regression (predict a single numeric value) and ranking.

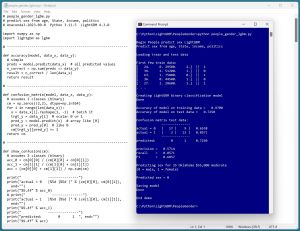

The best way to see where this article is headed is to take a look at the screenshot of a demo program in Figure 1. LightGBM has three programming language interfaces -- C, Python and R. The demo program uses the Python language API. The demo begins by loading the data to analyze into memory. The data looks like:

```[ 24.  0.  29500.  2.]  ||  1
[ 39.  2.  51200.  1.]  ||  0
[ 63.  1.  75800.  0.]  ||  1
[ 36.  0.  44500.  1.]  ||  0
[ 27.  1.  28600.  2.]  ||  1
. . .```

There are 200 items in the training dataset and 40 items in a test dataset. Each line represents a person. The predictor variables are age, state of residence (0 = Nebraska, 1 = Michigan, 2 = Oklahoma), annual income and political leaning (0 = conservative, 1 = moderate, 2 = liberal). The target class label to predict is sex (0 = male, 1 = female).

The demo creates and trains a LightGBM binary classifier object. The trained model predicts the training data with 97.00 percent accuracy (194 out of 200 correct) and predicts the test data with 72.5 percent accuracy (29 out of 40 correct).

The demo uses the trained model to predict the sex of a new, previously unseen person who is age 35, from Oklahoma, who make \$55,000 a year and is politically moderate. The prediction is 0 = male. The demo concludes by saving the trained model to file.

This article assumes you have intermediate or better programming skill with a C-family language and a basic knowledge of decision tree terminology, but does not assume you know anything about LightGBM. The entire source code for the demo program is presented in this article and is also available in the accompanying file download. You can also find the source code and data online.

The Data
The demo program uses a 240-item set of synthetic data. The raw data looks like:

```F  24  michigan  29500.00  liberal
M  39  oklahoma  51200.00  moderate
M  36  michigan  44500.00  moderate
. . .```

The fields are sex (M, F), age, state (Michigan, Nebraska, Oklahoma), income and political leaning (conservative, moderate, liberal). When using LightGBM, it's best to encode categorical predictors and labels using zero-based ordinal encoding. Unlike most other binary classification systems, when using LightGBM, numeric predictor variables can be used as-is. You can normalize numeric predictors using min-max, z-score, or divide-by-constant normalization, but normalization does not help LightGBM models.

You can encode your data in a preprocessing step, or you can encode programmatically while the data is being loaded into memory. The demo uses a preprocessing approach. The comma-delimited encoded data looks like:

```1, 24, 0, 29500.00, 2
0, 39, 2, 51200.00, 1
1, 63, 1, 75800.00, 0
0, 36, 0, 44500.00, 1
1, 27, 1, 28600.00, 2
. . .```

The 240-item encoded data was split into a 200-item set of training data used to create a prediction model and a 40-item set of test data used to evaluate the model.

Installing Python and LightGBM
To use the Python language API for LightGBM, you must have Python installed on your machine. I strongly recommend using the Anaconda distribution of Python. The Anaconda distribution contains a Python interpreter and roughly 500 Python packages that are (mostly) compatible with each other. The demo uses version Anaconda3-2023.09-0, which contains Python version 3.11.5. To install Anaconda on a Windows platform, go here and find installer file Anaconda3-2023.09-0-Windows-x86_64.exe (or newer). Note: it is very easy to accidentally download a version that's not compatible with your machine.

Click on the .exe file link to download it to your machine. After the file is on your machine, double-click on the file to start the GUI-based installation process. In most scenarios, you can accept all the default installation values except the one which does not add Anaconda3 to your machine's PATH environment variable -- I recommend adding it so that you don't have to manually edit your system environment variables, or enter long paths on the command line.

You can find also consult step-by-step instructions for installing Anaconda Python.

You can verify your Anaconda Python installation by opening a command shell and typing the command "python" (without quotes). You should see a reply message that indicates the version of Python, followed by the Python triple greater-than prompt. You can type "exit()" to quit the interpreter.

If you ever need to uninstall Anaconda on a Windows machine, you can do so by going to the Add or Remove Programs setting and clicking on the Uninstall option.

At the time this article was written, the Anaconda distribution does not contain the LightGBM system, and so it must be installed separately. By the time you read this article, LightGBM might be included with the Anaconda distribution you installed. To check if LightGBM was installed, in a command shell, type "python," then at the triple greater-than prompt type "import lightgbm." If LightGBM is already installed, the shell will silently reply with a triple greater-than prompt. If LightGBM is not installed, you will see an error message "ModuleNotFoundError."

To install LightGBM, I strongly recommend using the pip installer program (which is included with Anaconda). To install the most recent version of LightGBM over the internet, open a command shell and type the command "pip install lightgbm." After a few seconds, you should see a message indicating success. To verify, open a command shell and type "python." At the Python prompt, type the command "import lightgbm as L" followed by the command "L.__version__" using double underscores. You should see the version of LightGBM that is installed.

Instead of installing LightGBM over the internet, you can first download the LigbtGBM package to your machine and then install. Go to https://pypi.org/ and search for "lightgbm." The search results will give you a link to a LightGBM package page. Click on the Download Files link. You will go to a page that has a .whl file named like lightgbm-4.3.0-py3-none-win_amd64.whl that you can click on to download the file to your machine. After the download completes, open a command shell, navigate to the directory containing the .whl file, and install LightGBM by typing the command "pip install [the .whl file name]."

If you ever need to uninstall LightGBM, you can do so by typing the command "pip uninstall lightgbm." I often use the local-install technique so that I can reinstall LightGBM on my machine even when I'm not connected to the internet.

The LightGBM Demo Program
The complete demo program is presented in Listing 1. The demo begins by loading the training data into memory:

```import numpy as np
import lightgbm as lgbm

def main():
# 0. get started
np.random.seed(1)

train_file = ".\\Data\\people_train.txt"
. . .```

The demo does not use the NumPy random number generator directly, but it's good practice to set the generator seed value anyway in case the program is modified to use the RNG.

The demo assumes that the training and test data files are located in a subdirectory named Data. The comma-delimited data is loaded into NumPy arrays using the loadtxt() function. The predictor values in columns 1, 2, 3, 4 are loaded as type float64 and the sex values in column 0 are loaded as type int64. Lines that begin with "#" are comments and are not loaded.

Listing 1: LightGBM Multi-Class Demo Program

```# people_gender_lgbm.py
# predict sex from age, State, income, politics
# Anaconda3-2023.09-0  Python 3.11.5  LightGBM 4.3.0

import numpy as np
import lightgbm as lgbm

# -----------------------------------------------------------

def accuracy(model, data_x, data_y):
# simple
preds = model.predict(data_x)  # all predicted values
n_correct = np.sum(preds == data_y)
result = n_correct / len(data_x)
return result

# -----------------------------------------------------------

def confusion_matrix(model, data_x, data_y):
# assumes 2 classes (binary)
cm = np.zeros((2,2), dtype=np.int64)
for i in range(len(data_x)):
x = data_x[i].reshape(1, -1)  # batch it
trgt_y = data_y[i]  # scalar 0 or 1
pred_y = model.predict(x)  # array like [0]
pred_y = pred_y[0]  # like 0
cm[trgt_y][pred_y] += 1
return cm

# -----------------------------------------------------------

def show_confusion(cm):
# assumes 2 classes (binary)
acc_0 = cm[0][0] / (cm[0][0] + cm[0][1])
acc_1 = cm[1][1] / (cm[1][0] + cm[1][1])
acc = (cm[0][0] + cm[1][1]) / np.sum(cm)

print("             ---------------")
print("actual = 0   |%5d |%5d |" % (cm[0][0], cm[0][1]),
end="")
print("%9.4f" % acc_0)
# print("             ---------------")
print("actual = 1   |%5d |%5d |" % (cm[1][0], cm[1][1]),
end="")
print("%9.4f" % acc_1)
print("             ---------------")
print("predicted:        0      1  ", end="")
print("%9.4f" % acc)
print("")

tp = cm[1][1]  # "true positive"
tn = cm[0][0]  # "true negative"
fp = cm[0][1]  # falsely predicted as positive
fn = cm[1][0]  # falsely predicted as negative
pre = tp / (tp + fp)
rec = tp / (tp + fn)
f1 = 1.0 / ( ((1.0 / pre) + (1.0 / rec)) / 2.0 )

print("precision = %8.4f" % pre)
print("recall    = %8.4f" % rec)
print("F1        = %8.4f" % f1)

# -----------------------------------------------------------

def main():
# 0. get started
print("\nBegin People predict sex LightGBM ")
print("Predict sex from age, State, income, politics ")
np.random.seed(1)

# sex, age, State, income, politics
train_file = ".\\Data\\people_train.txt"
test_file = ".\\Data\\people_test.txt"

np.set_printoptions(precision=0, suppress=True)
print("\nFirst few train data: ")
for i in range(5):
print(train_x[i], end="")
print("  ||  " + str(train_y[i]))
print(". . . ")

# 2. create and train model
print("\nCreating LightGBM binary classification model ")
params = {
'objective': 'binary',    # not needed this API
'boosting_type': 'gbdt',  # default
'num_leaves': 31,         # default
'learning_rate': 0.05,    # default = 0.10
'n_estimators': 100,      # default
'feature_fraction': 1.0,  # default
# 'min_data_in_leaf': 5,  # default = 20
'min_data_in_leaf': 10,   # default = 20
'random_state': 0,
'verbosity': -1           # default = 1
}
model = lgbm.LGBMClassifier(**params)
model.fit(train_x, train_y)
print("Done ")

# 3. evaluate model
acc_train = accuracy(model, train_x, train_y)
print("\nAccuracy of model on training data = %8.4f " \
% acc_train)
acc_test = accuracy(model, test_x, test_y)
print("Accuracy of model on test data = %8.4f " \
% acc_test)

print("\nConfusion matrix test data: ")
cm = confusion_matrix(model, test_x, test_y)
show_confusion(cm)

# 4. use model
print("\nPredicting sex for 35 Oklahoma \$55,000 moderate ")
print("(0 = male, 1 = female) ")
x = np.array([[35, 2, 55000.00, 1]], dtype=np.float64)
y_pred = model.predict(x)
print("\nPredicted sex = " + str(y_pred[0]))

# 5. save model
import pickle
print("\nSaving model ")
pth = ".\\Models\\gender_model.pkl"
with open(pth, "wb") as f:
pickle.dump(model, f)
print("Done ")

# with open(pth, "rb") as f:
#
# x = np.array([[35, 2, 55000.00, 1]], dtype=np.float64)
# pred = model2.predict(x)
# print("\nPredicted sex = " + str(pred[0]))

print("\nEnd demo ")

if __name__ == "__main__":
main()```

The test data is loaded into memory as arrays test_x and test_y in the same way as the training data. Next, the demo displays the first five lines of the training data as a sanity check:

```  np.set_printoptions(precision=0, suppress=True,
floatmode='fixed')
print("First few train data: ")
for i in range(5):
print(train_x[i], end="")
print("  ||  " + str(train_y[i]))
print(". . . ")```

In a non-demo scenario, you might want to display all the data.

Creating and Training the LightGBM Model
The demo program creates and trains a LightGBM binary classifier using these statements:

```  # 2. create and train model
print("Creating LGBM binary classification model ")
params = {
'objective': 'binary',    # not needed this API
'boosting_type': 'gbdt',  # default
'num_leaves': 31,         # default
'learning_rate': 0.05,    # default = 0.10
'n_estimators': 100,      # default
'feature_fraction': 1.0,  # default
'min_data_in_leaf': 10,   # default = 20
'random_state': 0,
'verbosity': -1           # default = 1
}
model = lgbm.LGBMClassifier(**params)
model.fit(train_x, train_y)```

The classifier object is named model and is instantiated by setting up its parameters as a Python Dictionary collection named params. The main challenge when using LightGBM is wading through the dozens of parameters. The LGBMClassifier class/object has 19 parameters (num_leaves, max_depth, etc.) and behind the scenes there are an additional 57 Learning Control Parameters (min_data_in_leaf, bagging_fraction, etc.), for a total of 76 parameters to deal with.

Documentation for the parameters can be found here and here.

Because the number of parameters is not manageable, you must rely on the default values and then try to find the handful of parameters that will create a good model. Based on my experience, the three most important parameters to explore and modify are n_estimators, min_data_in_leaf and learning_rate.

A LightGBM classifier is made up of n_estimators (default value is 100), which are relatively small decision trees that are called weak learners, or sometimes base learners. The weak trees are constructed sequentially where each tree uses gradients of the error from the previous tree. If the value of n_estimators is too small, then there aren't enough weak learners to create a model that predicts well (underfit). If the value of n_estimators is too large, then the model will overfit the training data and predict poorly on new, previously unseen data items.

The num_leaves parameter controls the overall size of the weak learner trees. The default value of 31 translates to a balanced tree that has five levels with 1, 2, 4, 8, 16 leaf nodes respectively. An unbalanced tree might have more levels. Weak learners that are too small might underfit, too large might overfit.

The min_data_in_leaf parameter controls the size of the leaf nodes in the weak learners. The default value of 20 means that each leaf node must have at least 20 associated data items. For a relatively small set of training data, the default greatly reduces the number of leaf nodes. For the demo with 200 training items, there would be a maximum of 200 / 20 = 10 leaf nodes, which would likely underfit the model and lead to poor prediction accuracy. The demo modifies the value of min_data_in_leaf from 20 to 10, which gave better results.

Note that the max_depth parameter controls the number of levels that each weak learner has. The default value is -1, which means that there is no explicit limit. In most cases, the num_leaves parameter will prevent the depth of the weak learners from becoming too large.

To recap, the n_estimators parameter controls the overall number of weak tree learners. The key parameters to control the size and shape of the weak learners are num_leaves and min_data_in_leaf. Based on my experience, I typically experiment with n_estimators (the default value of 100 is often too large for small datasets) and min_data_in_leaf (the default of 20 is often too large for small datasets). I usually leave the num_leaves and max_depth parameter values at their default values of 31 and -1 (unlimited) respectively unless the model just doesn't predict well.

The demo modifies the learning_rate parameter from the default value of 0.10 to 0.05. The learning rate controls how much each weak learner tree changes from the previous learner. The effect of changing the learning_rate can vary quite a bit depending on the size and shape of the weak learners, but as a rule of thumb, smaller values work better for smaller datasets.

The demo modifies the value of the random_state parameter from its default value of None (Python's version of null) to 0. The None value means that results are not reproducible due to the random initialization component of the training process. Any value other than None will give (mostly) reproducible results, subject to multi-threading issues.

The demo modifies the value of the verbosity parameter from its default value of 1 to -1. The default value of 1 prints warning messages, regular error messages and fatal error messages. The demo value of -1 prints only fatal error messages. I did this only to keep the output small so I could take a screenshot. In a non-demo scenario you should leave the verbosity value at 1 in most situations.

After setting up the parameter values in a Dictionary collection, they are passed to the LGBMClassifier using the Python ** syntax, which means unpack the values to parameters. Parameter values can be passed directly, for example model = lgbm.LGBMClassifier(n_estimators = 50, learning_rate = 0.05 and so on), but because there are so many parameters, this approach is rarely used.

The model is trained using the fit() method. Almost too easy because all the work is done when setting up the parameters.

Evaluating the Model
It's possible to evaluate a trained LightGBM binary model in several ways. The most basic approach is to compute simple prediction accuracy (number correct predictions divided by total number of predictions) on the training and test data. The demo program defines an accuracy() function where the key statements are:

```preds = model.predict(data_x)  # all predicted values
n_correct = np.sum(preds == data_y)
result = n_correct / len(data_x)```

For the demo program, the outputs of the simple accuracy() function are:

```Accuracy of model on training data = 0.9700
Accuracy of model on test data = 0.7250```

For binary classification problems, it's more or less standard practice to compute and display a confusion matrix that shows where incorrect predictions have been made. The demo defines a confusion_matrix() function that computes a confusion matrix and a show_confusion() function that displays the matrix. The demo output is:

```Confusion matrix test data:
---------------
actual = 0   |   17 |    9 |   0.6538
actual = 1   |    2 |   12 |   0.8571
---------------
predicted:        0      1     0.7250

precision =   0.5714
recall    =   0.8571
F1        =   0.6857```

The entries off the main diagonal are incorrect predictions. For example, the 9 value at row [0] and column [1] indicates that there were 9 data items that have true sex = 0 (male) but were predicted to be class 1 (female).

Precision and recall are specialized accuracy metrics. It's best to think of them simply as alternatives to simple accuracy. The definitions of precision and recall depend on which of the two classes is considered "positive." Because this is arbitrary, the meanings of precision and recall are ambiguous. The thing to look for is situations when precision and recall differ greatly, which indicates one of the two classes is being predicted much better or worse than the other class. For the demo, class 1 has much better accuracy (0.8571) and class 0 (0.6538).

The F1 score is the harmonic mean (average of two fractions) of the precision and recall values. Again, you can consider this as an alternative accuracy metric.

The LightGBM Python API is designed to work with the scikit-learn machine learning package. The scikit-learn package is included in the Anaconda distribution and so you can directly call built-in scikit-learn modules. For example, you can get a scikit style confusion matrix using these statements:

```from sklearn.metrics import confusion_matrix
pred_y = model.predict(test_x)  # all predicteds
cm = confusion_matrix(test_y, pred_y)
print(cm)```

The ability to use built-in scikit-learn library modules is powerful but has a bit of a learning curve if you're not familiar with the library.

Using and Saving the LightGBM Model
Using a trained LightGBM binary classifier is simple, subject to two minor syntax details. Example calling code is:

```x = np.array([[35, 2, 55000.00, 1]], dtype=np.float64)  # 2D
y_pred = model.predict(x)
print("Predicted sex = " + str(pred[0]))```

Notice that the input x values have double square brackets to make the input a 2D matrix, which the predict() method requires. Alternatively, you can declare a 1D vector then reshape it to 2D:

```x = np.array([35, 2, 55000.00, 1], dtype=np.float64)  # 1D
x = x.reshape(1, -1)  # 1 row, n cols 2D
pred_y = model.predict(x)```

The return value from the predict() method is an array rather than a scalar value. So, when the input is a single data item, and you want just the single predicted class, you can access the class at index [0] like so:

```pred_y = model.predict(x)
print("Predicted sex = " + str(pred_y[0]))```

Alternatively:

```pred_y = model.predict(x)  # array
pred_y = pred[0]           # scalar
print("Predicted politics = " + str(pred))```

The demo program saves the trained LightGBM in binary format using the Python pickle library. (In ordinary English, the word "pickle" means to preserve). The calling code is:

```import pickle
print("Saving model ")
pth = ".\\Models\\politics_gender.pkl"
with open(pth, "wb") as f:
pickle.dump(model, f)```

The code assumes the existence of a subdirectory named Models. The "wb" argument means "write to file as binary." The "pkl" extension is common, but any extension name can be used.

A LightGBM model saved using pickle can be loaded into memory from another program and used like so:

```pth = ".\\Models\\politics_gender.pkl"
with open(pth, "rb") as f:
x = np.array([[35, 2, 55000.00, 1]], dtype=np.float64)
pred = model2.predict(x)```

There are other ways to save a trained LightGBM model, but the pickle approach is the easiest and the most common.

Wrapping Up
The LightGBM system was inspired by the XGBoost (extreme gradient boosting) system, which in turn was inspired by earlier tree boosting algorithms. The "boosting" term of the LightGBM name refers to the technique of combining several weak learners into one strong learning model. The "gradient" term refers to the technique of using the Calculus gradient of the error of a weak learner to construct the next weak learner in the model sequence. The "machine" term is an old way to indicate that a system is a machine learning one rather than a classical statistics one.

Arguably, the two most powerful techniques for binary classification on non-trivial datasets, are neural networks and tree boosting. In some recent classification challenges, LightGBM entries have dominated the contest leader board. This may be due, in part, to the fact that LightGBM can be used directly out-of-the-box, which leaves a lot of time for hyperparameter fine-tuning. Using a neural network classifier requires significantly more background knowledge and effort.

"In most scenarios, you can accept all the default installation values except the one which does not add Anaconda3 to your machine's PATH environment variable -- I recommend adding so that you don't have to manually edit your system environment variables, or enter long paths on the command line."

• ### Visual Studio Subscribers Now Get 'Visual Studio Live!' and Other Learning Discounts

Microsoft announced new learning benefits to subscribers of its flagship Visual Studio IDE, including discounts for Visual Studio Live! developer conferences and other educational opportunities.

• ### ChatGPT's Impact on App-Dev? GitHub Site Gives Instant Insights

GitHub just updated its online open data and insights platform that provides information on the global and local impact of developers, letting users instantly see their own software development trends.

• ### Microsoft Focuses on .NET Aspire, 'Modern SQL' with AI at Dev Conference

Microsoft yesterday announced its dev execs will focus on cloud-native development with .NET Aspire -- along with modern SQL with a touch of AI in Microsoft Fabric -- at a developer conference next month at the company's Redmond headquarters.

• ### Data Dimensionality Reduction Using a Neural Autoencoder with C#

Dr. James McCaffrey of Microsoft Research presents a full-code, step-by-step tutorial on creating an approximation of a dataset that has fewer columns.

• ### OpenSilver 3.0 Framework for .NET Gets UI by AI

A new AI-powered UI designer highlights the new release of OpenSilver 3.0, a free, open-source UI framework for building modern .NET web applications in C# and XAML, basically a reimplementation of Microsoft Silverlight that runs on current browsers via WebAssembly.
